PROJECT ID: SD-01-SURF
Surface Quality
G2 / G3
CAD: SOLIDWORKS
Surface Layers
- 01 Primary Face Class-A
- 02 Blend Fill G2 Curvature

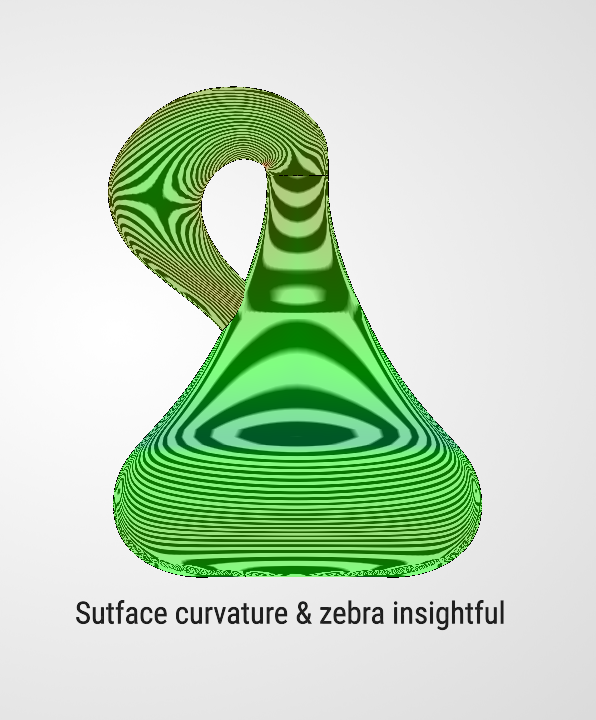

- 03 Zebra Map Analysis Skin
Surface Analysis
TOGGLE ZEBRA STRIPES
X
Y
Z
Methodology
The Surfacing Workflow
Concept Brief
Gather design intent, reference surfaces, and OEM brand guidelines before any modelling begins.

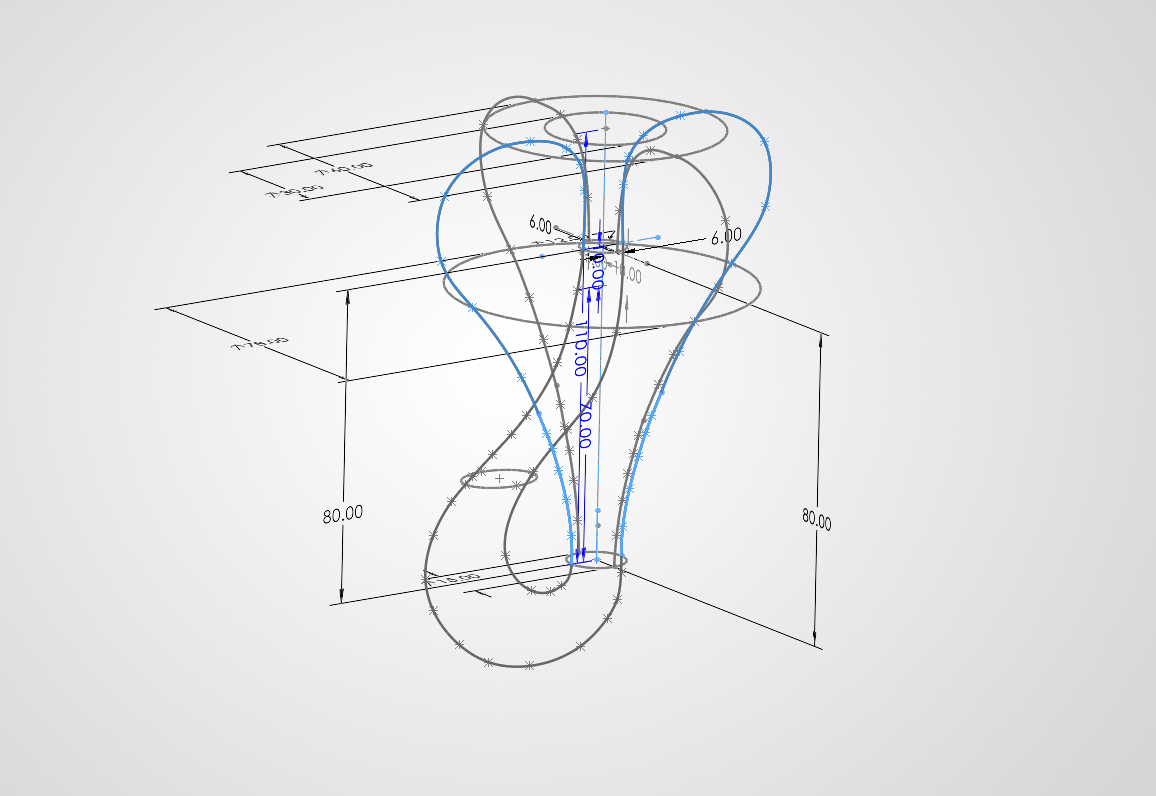

Sketch & Ideation
2D proportioning sketches define volume, character lines, and highlight flow.
Primary Surfaces
Main B-class panels built in SOLIDWORKS with strict curvature continuity from the first pass.
Analysis & Refinement
Zebra striping, curvature comb, and highlight analysis used to validate G2/G3 across all edges.
Final Delivery
Production-ready STEP/IGES files with full documentation delivered for tooling handoff.
